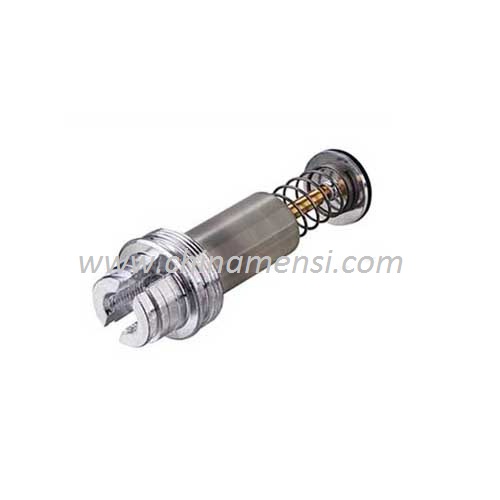

Solenoid Valve

Solenoid Valve

Model NO.:ESMG-013

Technical parameters: Opening current: ≤ 120mA Closed valve current: ≥ 40 mA Free travel: 49.5 ± 0.5 mm Working stroke: 42.5 ± 0.4 mm Internal resistance: 20 mΩ ± 10% Sealing force: full compression ≥ 4.8 N

Share This:
Product Description

Product Name : Solenoid valve

Technical parameters:

Opening current: ≤ 120mA

Closed valve current: ≥ 40 mA

Free travel: 49.5 ± 0.5 mm

Working stroke: 42.5 ± 0.4 mm

Internal resistance: 20 mΩ ± 10%



Sealing force: full compression ≥ 4.8 N

Application country: Europe, North America

Certification:CE(70mbar)/NULL(1/2PSI)

Product name: Safety brass valve(One In And Two Outlets)

Applicable gas families:LPG/propane/butane



Magnet Valve and thermocouple work together as safety protection. They are widely used in gas valve,Gas Stoves and Gas water Heater.



Working Principle :

When thermocouple heat, it will generate thermoelectri power, which make the magnet/solenoid  valve work properly.

Specific working principle for gas appliance as follows: When you press the knob, a small fire lit by its flame heating thermocouple, thermoelectric power generation. Thermoelectric power through the wire introducing electromagnetic

coil generates a magnetic field pull the magnet/solenoid valve, the gas valve opens, the combustion passage is open,

maintain its normal combustion. In the event of high winds or spill soup, etc., putting out the fire, the thermocouple

thermoelectric power drops quickly to zero, the coil energized, magnet/solenoid valve failure, rapid reset in spring,

the valve closes the gas path, terminate gas supply to ensure safety.
